KJM-550 type of external doors

Wansheng kjm -550-type internal / external rapid shutter doors, high-frequency logistics channel, the use of wind-resistant steel curtain wall wind resistance (wind-resistant bar: wind pressure requirements by door openings), wind ability, suitable for large external doors And wind pressure requirements within the door, sealed, dustproof, pest control, protection of the working environment.

咨询报价

全国服务热线:13660108455




Product Usage:
Wansheng kjm -550-type internal / external rapid shutter doors, high-frequency logistics channel, the use of wind-resistant steel curtain wall wind resistance (wind-resistant bar: wind pressure requirements by door openings), wind ability, suitable for large external doors And wind pressure requirements within the door, sealed, dustproof, pest control, protection of the working environment.
Applicable environment:
> Indoor, outdoor wind pressure requirements of the door
> Heavy industry, light industry, food, electronics, medicine, printing, packaging, storage, automotive, manufacturing.
> High demands on the health environment of the industry.

On:

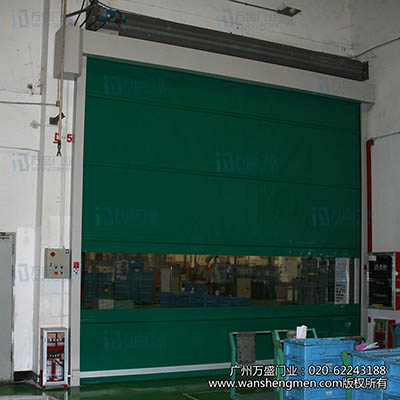

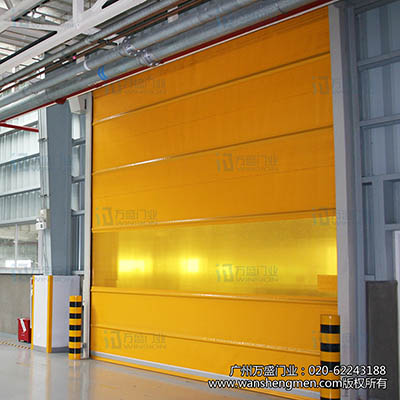

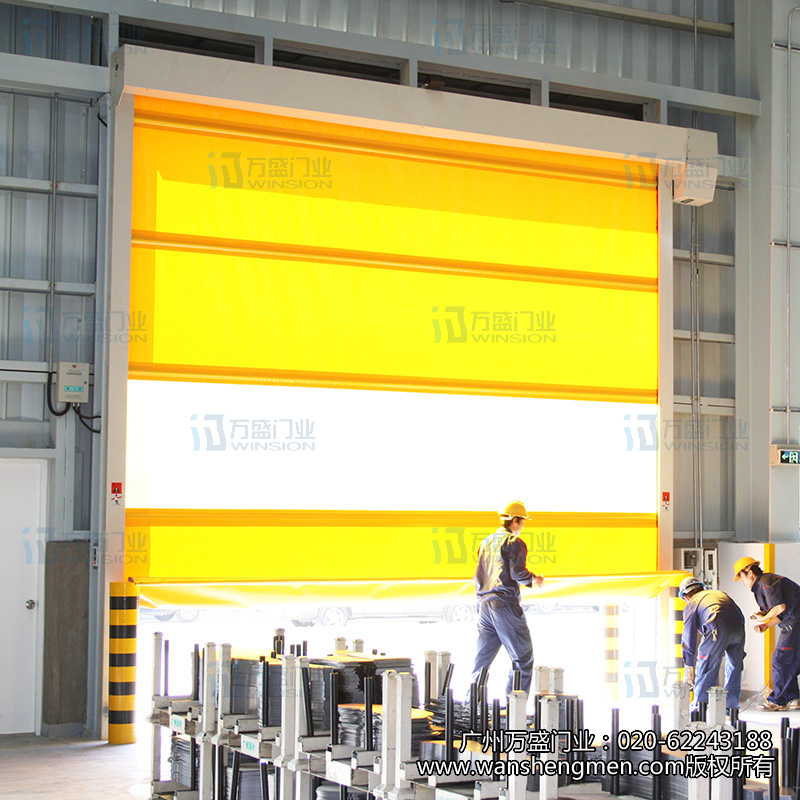

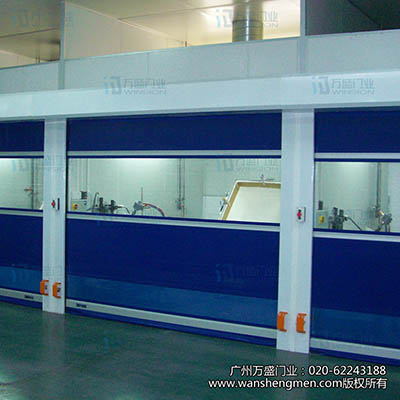

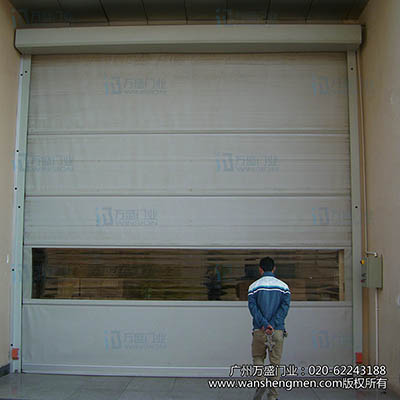

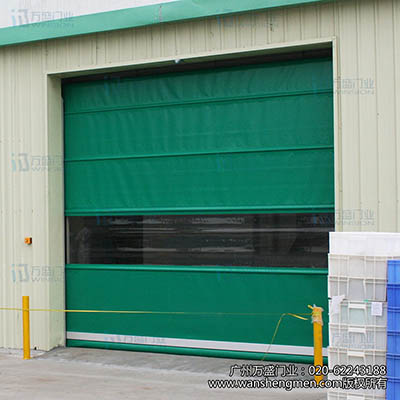

Quick Gate Factory Case Pictures:









Fast shutter doors KJM-550 video display Fast shutter doors KJM-550 video display Fast shutter doors KJM-550 video display
Technical Parameters:
Wansheng KJM-550 type of internal / external doors
Appearance: cold rolling steel plate electrostatic spraying door frame 140 × 150㎜, door cover, chassis.
Power performance: Germany SEW brake brake motor, power 0.75-1.5KW, power 220V / 380V, braking voltage 220V.
Control system: imported microcomputer inverter control box (Mitsubishi cpu).
Control voltage: safe low voltage 24VDC.
Open speed: open 0.6-1.2m / sec / off 0.6-1.0m / sec (variable frequency adjustable speed).
Curtain material: imported high-density polyester fiber surface coating treatment, thickness 0.8mm-1.5mm, a variety of colors.
Tensile strength: 5700 / 5100N / 5cm, tear strength 900 / 80N.
Fire rating: German standard MZD / NBL. Operating temperature: -10 ℃ +70 ℃ / super cold area -40 ℃
Transparent window: imported PVC transparent crystal soft board, thickness 1.5mm, rectangular or oval.
Wind-resistant material: wind-resistant steel wind-resistant pipe.
Wind resistance: 15m / s (50Pa standard 3 × 3).
Sealing performance: the bottom of the curtain U-type air bag cloth pocket can be closely integrated with the uneven ground, the door seal on both sides of the top dust, pest control.
Security configuration: standard infrared photoelectric protection, pressure air bags, warning lights, collision column, power failure manual rocker.
